Machining

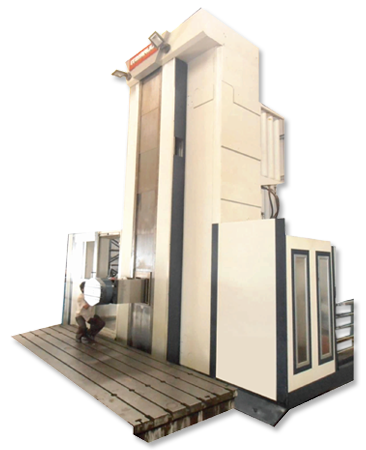

Heavy duty floor type Boring and Milling Centre with facility of 60/20 ton crane capacity and hydrostatic guiding system that has Type MP 5 RAM, Telescopic in and out RAM and Spindle Movements.
We feel proud of our advanced setup, at the heart of which is the advanced multifunctional machine from Juaristi, which is a leading global brand appreciated for robustness, reliability and precision.
- Make : Juaristi, Origin: Spain
- Year of Manufacturing: 2011
- Control: CNC
- Rotary table : 3500 mm x 4000 mm with 3 arc seconds accuracy
- Table Capacity: 60,000 kg.
- Travel of axis
- X axis - 10,000mm
- Y axis - 4,000mm
- Z axis - 1,200mm
- W axis - 800 mm
- V axis 2500mm
- Spindle diameter:150mm
- Digital control Siemens 840 D SL (solution line)
- Universal programmable milling head - Juaristi, Spain
- Facing head with Servo Motor – D’ andrea, Italy
- Alberti head
- Extra Long Facing Head
MAKE-CKD BLANSKO SK 50A (CZEK REPUBLIC,EUROPE MAKE).
Specification :
- Chuck dia – 4.77 mtr
- Height – 3.5 mtr.
- Weight carrying capacity – 60 Ton
- Control - Fanuc CNC
2 Machining
.jpg)
MAKE-CKD BLANSKO SK 50A (CZEK REPUBLIC,EUROPE MAKE).
Specification :
- Chuck dia – 4.77 mtr
- Height – 3.5 mtr.
- Weight carrying capacity – 60 Ton
- Control - FANUC
Sectors We Serve
We are a reliable and long-standing supplier for clients in the Defence Production, Nuclear Energy, Power Generation and Process Engineering industries.Supporting the Make in India initiative, we supply Indian OEMs across multiple industries, meeting their heavy precision machining needs with reliability.
- Interfacing Structure
- Thrust Bearing Structure
- Subframe Structure
- Launching Platform
- Sarvatra Bridge
- Bridge End Module
- Saddle Assembly
- Foldable Hanger Door Assembly
- Top Deck Extrusion
- QCIL Launcher Structure
- Stationary Base
- Underframe Structure
- Chassis Assembly
- Combing Section
- Bearing Lantern
- Barrel
- Motor Stool
- Top Plate Assembly
- Valve Cover
- Turbine Casing Assembly
- HP Outer Casing
- ESV CV Casing
- Turbine Casing
- Pump Casing FGD
- Delivery Elbow
- Delivery Bend and Motor School
- Decanter Frame
- Beam
- Reactor Screw
- T Pipe
- Discharger
